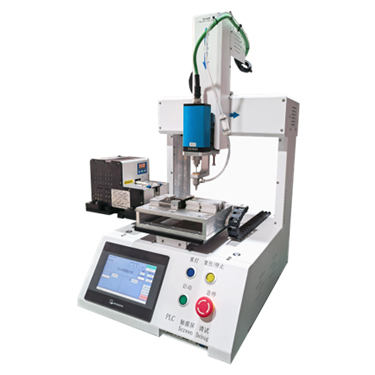

3-Axis Desktop Automatic Screwdriving Machine

High-performance automatic screwdrivers for efficient, high-volume production

This is a 3-axis desktop automatic screwdriving machine, Kingdom's high-performance screw fastening solutions deliver unmatched efficiency and consistent quality through automated feeding and fully integrated processes. Our entire product range features minimized operational costs, while patented quick-change tooling enables mold swaps in seconds. Intelligent fault detection automatically rejects compromised screws, ensuring continuous production flow even with suboptimal fastener quality.

GET A QUOTE

Engineered for Demanding Applications

From harsh industrial environments to multi-station assembly lines and high-speed precision manufacturing,automatic screwing machine kingdom systems excel across all scenarios with proven reliability, extended service life, and peak efficiency. Customizable configurations address specialized application requirements.

Products Parameters of 3-Axis Desktop Automatic Screwdriving Machine

Work Envelope	26024090mm （XYZ）
Outline dimension	570520730mm（WLH）
Drive System	Closed-loop stepper motor
Positioning Accuracy	±0.02 mm
Control System	Touchscreen + Motion control card
Driver System	Smart servo driver with programmable torque and RPM presets
Cycle Time	1.5s-1.8s/screw
Program capacity	100 Recipes
Power Consumption	600W
Power supply	220VAC
Air Supply	5-6KPa
Weight	45Kg

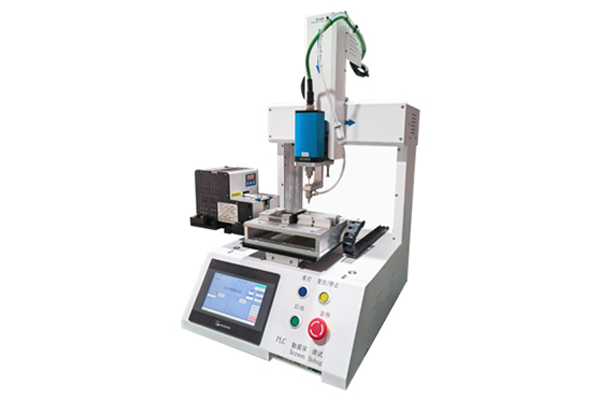

Key Advantages of Our 3-Axis Desktop Automatic Screwdriving Machine

Compact Platform

3-axis with a single compact station
Minimal footprint for flexible deployment in space-constrained production lines

Versatile Screw Handling

Dual pickup options: Vacuum suction or magnetic retention
Magnetic grippers enable secure handling of:
Deep recessed holes
Angled holes (up to 30°)
Irregular curved surfaces
Multi-level surfaces

Dual-Screw & Smart Torque Control

Simultaneous fastening of two screw types on a single workpiece
Intelligent servo drivers support:

Three independent torque presets
Real-time torque/rpm monitoring
Auto-adjustment for material variations

User-Centric Operation

Intuitive programming interface (≤15min training required)
HMI touchscreen provides:
Real-time visual status tracking
Dynamic torque/rpm graphs
Error diagnostics with solution prompts

Precision Motion System
