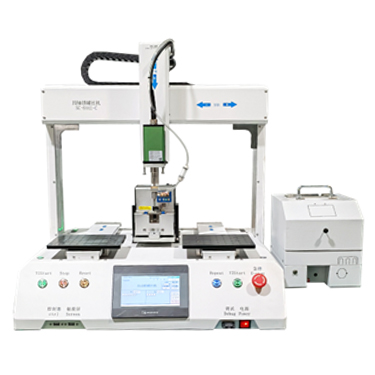

This is a Multi-Spindle Desktop Screw Machine, high quality and precision, a reliable screwdriving tool for products like Smartphones, Cordless Phones, Calculators, GPS Devices, Audio Systems, Cameras, Educational Tablets, Small Appliances, Toys.
Welcome to contact us for more detailed information or just tell us your individual application, we are pleased to offer you tailored solutions.
| Work Envelope | 210*410*90mm （X*Y*Z） |
| Outline dimension | 710*730*780mm（W*L*H） |
| Drive System | Closed-loop stepper motor |
| Positioning Accuracy | ±0.02 mm |
| Control System | Touchscreen + Motion control card |
| Driver System | Smart servo driver with programmable torque and RPM presets |
| Cycle Time | 1.5s-1.8s/screw |
| Program capacity | 100 Recipes |
| Power Consumption | 750W |
| Power supply | 220VAC |
| Air Supply | 5-6KPa |
| Weight | 100Kg |
Pneumatic Screw Feeding
Smart servo driver
Reinforced sheet metal frame with height-adjustable feeder enables universal compatibility for multi-height workpieces
Closed-loop stepper motor with micro-stepping precision enables real-time position compensation, step-loss prevention, and minimized resonance
The automatic screw driving machine integrates a high-performance motion control system with a one-touch programming interface
Integrated with Weinview® HMI touchscreen for dynamic visualization of fastening process, enabling real-time monitoring of driver RPM and torque output
Four-Axis Pneumatic Configuration
Four independently controlled axes with pneumatic screw delivery
Compressed-air feeding ensures consistent fastener supply
Synchronous Dual-Station Operation
Dual workstations enable simultaneous processing
Continuous alternating workflow: Station A fastens while Station B loads
Zero-Downtime Production
Eliminates idle time between cycles
Achieves 40-60% higher throughput vs. single-station systems
Optimized Efficiency Metrics
Cycle time reduction through parallel operations
24/7 sustainable output with automated material handling
Precision Air-Feeding Benefits
Prevents fastener jamming or misalignment
Suitable for screws of Diameter-to-Length Ratio: 1 : 1.8 (D:L)
