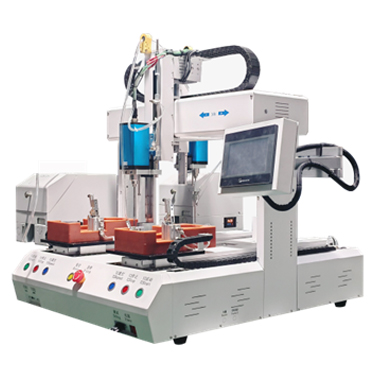

This advanced six-axis screwdriving system features a unique back-to-back dual-spindle, dual-station design with dual screw hoppers, enabling the simultaneous locking of two different screw types on a single product for maximized production efficiency. Equipped with intelligent detection capabilities, it automatically identifies and flags potential defects such as missed screws, protruding screws, and stripped threads, ensuring consistent assembly quality.
Smart Quality Assurance: Features intelligent detection to identify missed screws, protruding screws, and stripped threads, ensuring consistent assembly quality.
Enhanced Flexibility: The automatic screwing machine comes standard with a universal fixture capable of handling screw fastening for multiple product models.
Compact & Automated Design: Boasts a small footprint for easy integration into production lines, featuring front-loading/rear-unloading for fully unmanned operation.
Protrusion Correction: Detects lifted screws and performs automatic correction, significantly improving first-pass yield.
Wide Screw Compatibility: Highly versatile; changing the screw feeding module adapts the machine to handle screws ranging from M1.0 to M4.0.
Maximum Productivity: The vacuum screwdriver machine utilizes an XY-axis design and alternating operation, eliminating product handling time to maximize production efficiency.
Vacuum fed
Blow-fed
Reinforced sheet metal frame with height-adjustable feeder enables universal compatibility for multi-height workpieces
Closed-loop stepper motor with micro-stepping precision enables real-time position compensation, step-loss prevention, and minimized resonance
Integrates high-performance motion control system with one-touch programming interface
Integrated with Weinview® HMI touchscreen for dynamic visualization of fastening process, enabling real-time monitoring of driver RPM and torque output
| Work Envelope | 230*200*90mm （X*Y*Z） |
| Outline dimension | 760*930*740mm（W*L*H） |
| Drive System | Closed-loop stepper motor |
| Positioning Accuracy | ±0.02 mm |
| Control System | Touchscreen + Motion control card |
| Driver System | Smart servo driver with programmable torque and RPM presets |
| Cycle Time | 1.0s-1.5s/screw |
| Program capacity | 100 Recipes |
| Power Consumption | 1050W |
| Power supply | 220VAC |
| Air Supply | 5-6KPa |
| Weight | 100Kg |
