Cabinet-Type Back-to-Back Automatic Screw Fastening System

Floor-Standing Automatic Screwdriving Machine, High-performance auto screwdrivers manufacturer from China

This industrial-grade screw fastening solution integrates a rigid cabinet enclosure with a dual-spindle, back-to-back configuration and dual-X/Y-axis motion control. Engineered for high-volume production, it supports flexible front-load/rear-unload and front-load/front-unload workflows while delivering vision-guided precision, intelligent quality control, and Industry 4.0-ready data integration.

GET A QUOTE

Products Parameters of Cabinet-Type Back-to-Back Automatic Screw Fastening System

Work Envelope	23041090mm （XYZ）
Outline dimension	11008501667mm（WLH）
Drive System	Closed-loop stepper motor
CCD Accuracy	±0.02 mm
Control System	Touchscreen + Motion control card
Driver System	Smart servo driver with programmable torque and RPM presets
Cycle Time	1.5s-1.8s/screw
Program capacity	100 Recipes
Power Consumption	1200W
Power supply	220VAC
Air Supply	5-6KPa
Weight	250Kg

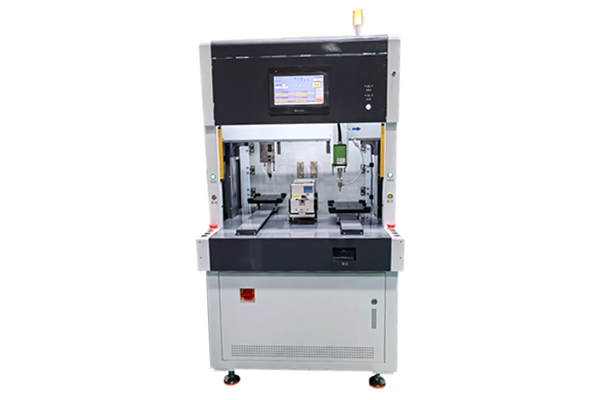

Key Advantages of Our Cabinet-Type Back-to-Back Automatic Screw Fastening System

Versatile Screw Acquisition

Dual pickup methods: automatic screw fitting machine has vacuum suction &magnetic adsorption
Magnetic pickup enables:
• Deep/holes (≤15mm depth)
• Angled holes (15°-75° inclination)
• Curved/convex surfaces
• Irregular height surfaces (0.1-5mm variation)

Multi-Fastening Capability

Dual-screw simultaneous fastening on single product
Smart servo driver supports:
• Three independent torque presets
• Real-time torque switching between screw types

Precision Mechanical Design

Reinforced sheet metal frame (2.5mm SUS304)
Adjustable feeder height mechanism (±30mm)
Multi-level product compatibility (Z-axis compensation)

High-Accuracy Motion System

Closed-loop stepper motors:
• ±0.02mm positioning repeatability
• Anti-lost step technology
• Vibration amplitude < 0.05mm
Advanced motion controller with:
• Positional error compensation
• Intuitive drag-and-drop programming

Intelligent HMI & Monitoring

Weintek industrial touchscreen interface
Real-time visualization:
• Fastening status mapping
• Torque/rpm live monitoring
• Defect location highlighting
