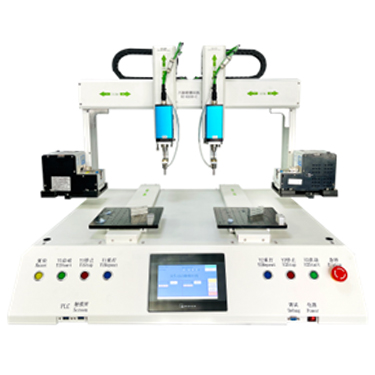

Maximize your assembly line efficiency with our advanced 6-Axis Automatic Screw Fastening Robot featuring dual spindles and dual workstations. Engineered for seamless alternation between stations, this innovative system effectively doubles throughput compared to single-station units. It delivers high-precision, reliable screw fastening specifically designed for a wide range of compact electronic devices and consumer products, including smartphones, cordless phones, calculators, GPS navigators, audio systems, digital cameras, laptops, tablets, educational devices, small household appliances, and toys.
| Work Envelope | 240*410*90mm （X*Y*Z） |
| Outline dimension | 900*870*780mm（W*L*H） |
| Drive System | Closed-loop stepper motor |
| Positioning Accuracy | ±0.02 mm |
| Control System | Touchscreen + Motion control card |
| Driver System | Smart servo driver with programmable torque and RPM presets |
| Cycle Time | 1.5s-1.8s/screw |
| Program capacity | 100 Recipes |
| Power Consumption | 750W |
| Power supply | 220VAC |
| Air Supply | 5-6KPa |
| Weight | 100Kg |
Two modes of screw feeding: the auto screwing machine has a vacuum/magnetic absorption
Multi-surface compatibility: Deep/angled holes, curved surfaces, height-varied planes (magnetic mode)
An electric magnetic screwdriver enables dual-screw fastening on a single workpiece with an intelligent servo driver supporting three independent torque presets
Reinforced sheet metal frame with height-adjustable feeder enables universal compatibility for multi-height workpieces
Closed-loop stepper motor with micro-stepping precision enables real-time position compensation, step-loss prevention, and minimized resonance
Integrates a high-performance motion control system with a one-touch programming interface
Integrated with Weinview® HMI touchscreen for dynamic visualization of fastening process, enabling real-time monitoring of driver RPM and torque output
