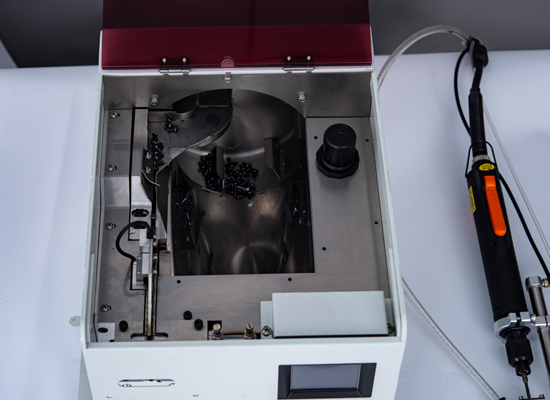

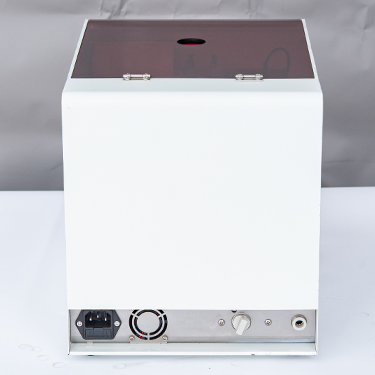

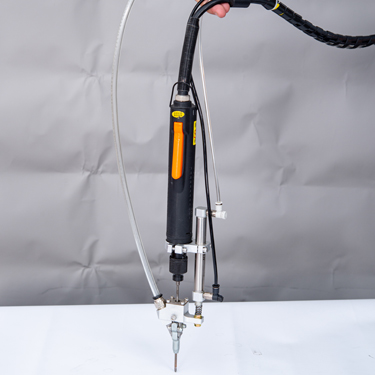

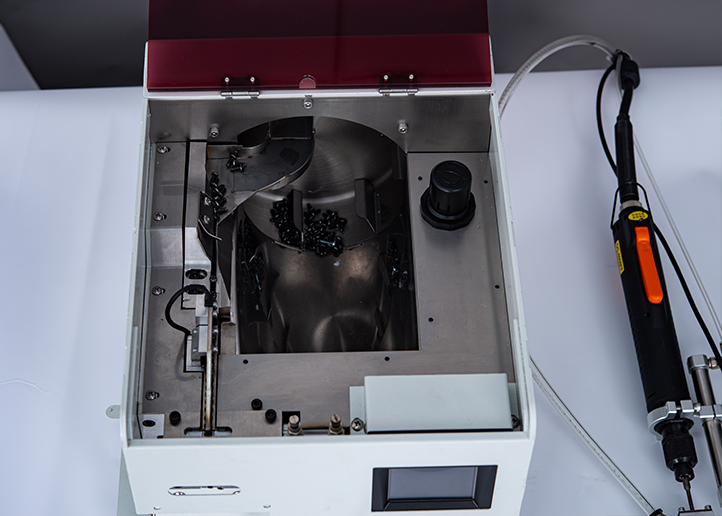

Kingdom Portable Screwdriver is a semi-automatic handheld screwdriving system. This mobile electric screwdriver combines a screw feeder for streamlined fastening. Simply connect power and air supply, load screws, and activate the system. The feeder automatically aligns and delivers screws to the driver nozzle. Operators need only trigger the driver with one-handed pressure, thus reducing assembly effort while boosting efficiency 3 times compared to manual methods.
As a professional manufacturer of automatic screw fastening systems, Kingdom offers high-quality handheld screwdrivers. If you are interested in our screwing machines or have any questions, please feel free to contact us.
Precisely handles diverse screw types across material grades including:
Flat Head Screws
Machine Screws
Hex Head Cap Screws
Round Head Screws
Screw pan head
Cheesehead screws
Fillister head screws
Pan head bolt
Kingdom's mobile automatic screwdriver revolutionises assembly lines with its advanced pneumatic screw feeder, delivering up to 60 screws per minute for M1-M6 metric screws, including cheesehead and fillister head types. Weighing only 11kg, this portable screwdriver machine operates on AC220V and 4-6kgf pressure, achieving a 1-1.5 second cycle time per screw. Its modular design seamlessly integrates into inline or standalone workstations, making it ideal for industries like consumer electronics, automotive, and home systems. The smart OLED touchscreen stores over 50 presets for instant parameter adjustments, while one-handed operation eliminates manual screw handling, reducing labour costs by 40%. With jam-proof reliability and tool-free blockage clearance in under 15 seconds, downtime is minimised. The mobile screwdriver electric excels in deep-recess and angled fastening (0-60°) with unmatched precision. Achieve a 90-day ROI with this ergonomic, high-efficiency solution. Contact us to discover how this Portable Screwdriver can elevate your production efficiency.
Kingdom's mobile electric handheld screwdrivers are designed for precision in consumer electronics, from smartphones to climate control units. This semi-automatic portable screwdriver machine processes M1-M6 screws, including round head and pan head bolts, at 60 PPM, streamlining assembly with a reliable pneumatic feeder. Its compact 350x230x300mm, 11kg design ensures portability, while the smart OLED touchscreen with over 50 presets enables instant setup for diverse tasks. One-handed, trigger-based operation reduces effort by 40%, and the jam-proof system clears blockages in under 15 seconds without tools. Built for challenging access points (0-60° tilt), the mobile screwdriver automatic excels in complex assemblies like camera or computer components. Requiring no training, its anti-fatigue design ensures comfort during long shifts. With a 90-day ROI and 1-4m conveying distance, this solution is a cost-effective choice for hobbyists and professionals alike. Get a quote today to optimise your fastening process with this innovative Portable Screwdriver.
| Body size: | 350*230*300MM (L*M*H) |
| Hole travel | customized |
| control system | Single Chip and touch screen |
| feeding model | Pneumatic |
| Working pressure | 4-6kgf |
| Operating voltage | AC220V 50HZ |
| Work efficiency | 1~1.5sec/pc |
| Conveying distance | 1-4 meters |
| Body weight | about 11KG |
| packing way | carton |
Kingdom portable screwdriver machine is engineered for fastening applications across industries including:
Consumer Electronics: smartphones, headphones, cameras, computers, navigation devices
Home Systems: televisions, audio equipment, appliances, climate control units
Mobility & Recreation: automotive components, toys, sports electronics
