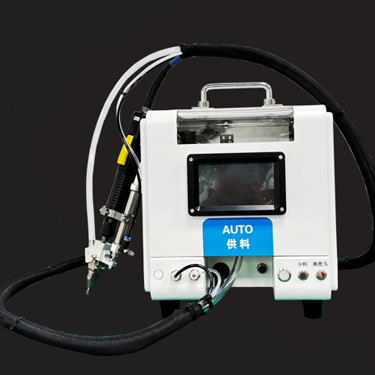

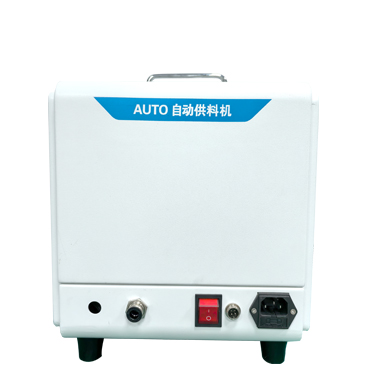

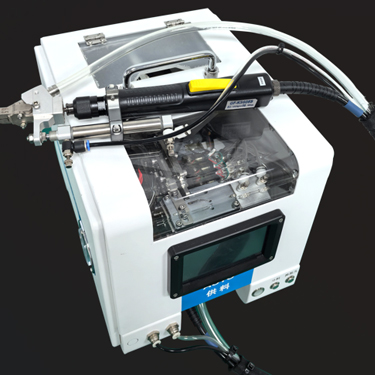

Screwdriver with Magazine Feeder

This Screwdriver with Magazine Feeder is a semi-automatic screwdriver, it's specifically designed to replace the cumbersome manual process of retrieving screws. Operators only need to load an appropriate quantity of qualified screws into the screw feeder. Once powered on and supplied with compressed air, the portable screwdriving machine will automatically align and pneumatically convey the screws in sequence, significantly improving work efficiency while reducing manual labor intensity.

GET A QUOTE

Screwdriver with Magazine Feeder Application

Applicated Screw Size: M1 to M6
Screw Requirement: The ratio of total screw length (including head) to head diameter must exceed 1.3, i.e., L/D>1.3

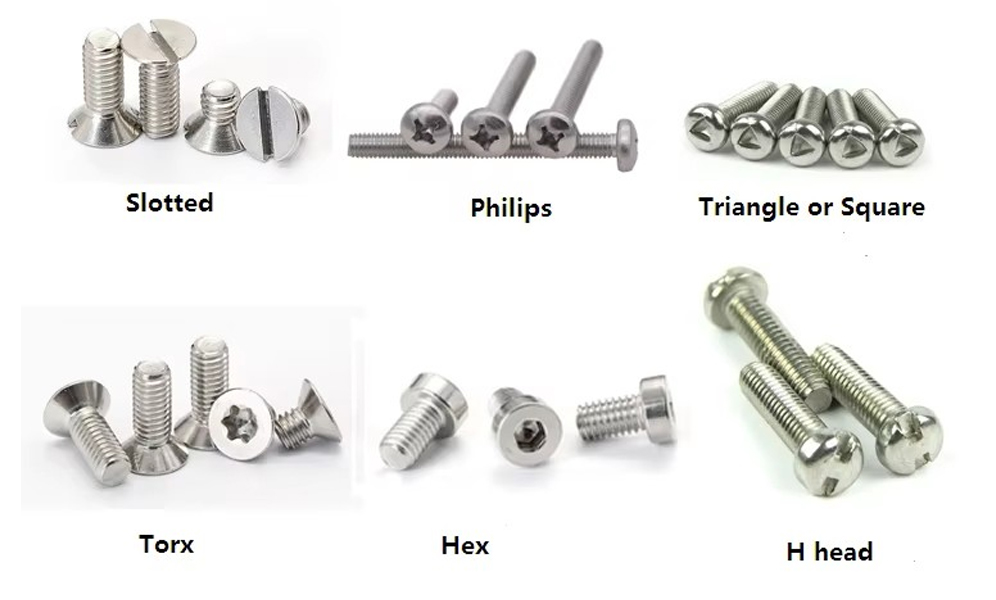

Applicated Screw Head Type: Slotted, Phillips, Tri-wing, Torx (Star), Hex socket, H-head, etc.
Materials of products to be screwed: plastic, iron, aluminum, etc.
Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

Screwdriver with Magazine Feeder Application

Products Parameters of Screwdriver with Magazine Feeder

Power supply	220VAC /50HZ
Air Supply	0.5-0.7Mpa
Outline dimension	330x260x300mm (LWH )
Weight：	12KG
Power Consumption：	80W
Feeding speed	0.8s/pc
Screw hopper volume	M3.0*1000PCS
Feeding distance	1-4m
Efficiency	50-70pcs/min

Key Advantage of Our Screwdriver with Magazine Feeder

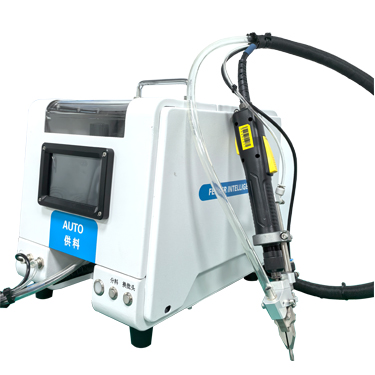

handheld screwdriver with magazine feeder

Patented Intelligent Control System and Premium Components & Stability

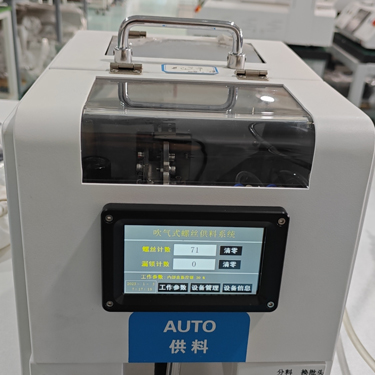

Equipped with Chengke's proprietary LCD control system, featuring user-friendly interface design, password lock functionality, and an exclusive appearance patent. All components comply with international standards (ISO/DIN), ensuring precision engineering, operational safety, low noise

Rapid Operator Training and Jamming-Free Performance

Intuitive design allows operators to master full functionality within 10 minutes, improving production efficiency by 40% while reducing labor intensity. Anti-jamming feeding mechanism ensures smooth operation (excluding defective screws), with integrated impurity filtration and noise levels below 65 dB(A).

High-Speed Pneumatic Delivery and Dual Feeding Modes

Compressed air-driven screw delivery to electric driver head achieves 0.5s/screw cycle time, eliminating upside-down orientation or jamming risks. Stable and long time continuous operation capability. Supports both torque-auto feed mode (adaptive tightening) and manual button feed mode for flexible process control.

Contamination-Free Handling and Smart Monitoring System

Fully automated screw loading prevents manual contact, eliminating surface contamination risks from skin oils/sweat. Integrated fault alerts (material shortage/jamming) with visual and audible alarms. Features dual counting systems:

Real-time per-product screw count.
Total screws.

Deep-Hole Fastening Capability

Specialized design for challenging applications, supporting fastener installation in holes up to 80mm depth.

Application Case Study

Handheld Screw Fastening System Helps BYD Double Production

As global new energy infrastructure accelerates, BYD's charging station production demand has surged exponentially. To address this growth, we delivered a custom-developed handheld screw fastening machine tailored for BYD's assembly line requirements. With the handheld screwdriving system BYD achieve a production output doubling.
