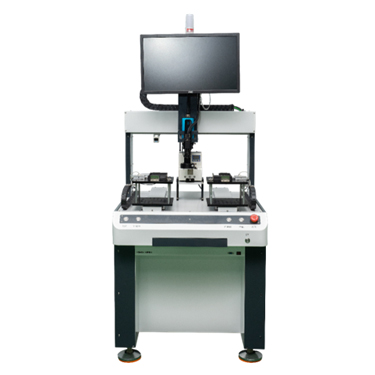

Vision-Based Screw Fastening Robot

Name: Vision-Based Screw Fastening Robot
Brand: Dongguan Kingdom Machine Technology Co., Ltd.
Availability: InStock

High-Accuracy Screwdriver Robot Machine Supplier in China

Kingdom streamlined four-axis AI-Powered cobot screwdriver system is engineered for high-precision fastening of small screws in compact electronics. Our robotic arm screwdriver delivers exceptional accuracy for applications such as smartphones, laptops, tablets, calculators, camera lenses, and educational devices, combining essential vision-guided precision with an optimized, user-friendly design.

GET A QUOTE

Vision-Based Screw Fastening Robot Parameters

Work Envelope	25025070mm （XYZ）
Outline dimension	7507501650mm（WLH）
Drive System	X/Y/Z-axis Stepper-Driven Timing Belt
CCD Accuracy	±0.02 mm
Operating System	Windows 10
Control System	IPC + 5 million pixels CCD+ high-performance motion control card
Driver System	Smart servo driver with programmable torque and RPM presets
Programming way	CCD coordinate teaching+ CAD coordinate import + tutoring
Cycle Time	2.0s/screw
Operation interface	21.5 inch LCD + Keyboard + mouse
Power supply	220VAC,50HZ
Air Supply	0.4~0.7MPa

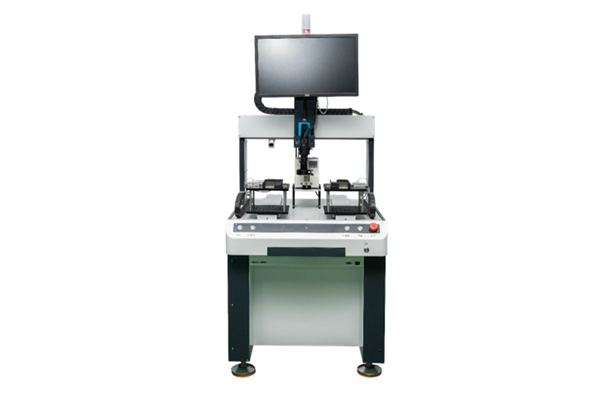

Vision-Based Screw Fastening Robot Advantages

PC-Based Industrial Control System

Utilizing an industrial computer (IPC), the robot screw system provides robust motion control with an intuitive visual programming interface and unlimited data storage capacity for reliable operation.

Vision-Assisted Coordinate Teaching

The screwing robot automatic screw machine employs CCD vision to guide screw point teaching, eliminating manual visual positioning errors and ensuring precise screw placement.

Graphical Process Monitoring

With the cobot screwdriver, screw locations and fastening results are displayed visually, vacuum screwdriver enables quick identification and troubleshooting of defect points for efficient quality control.

Automated Height Learning

The screw fastening robot features a float height displacement sensor that automatically learns and sets optimal coordinate heights, enhancing assembly accuracy and consistency.

Comprehensive Quality Assurance

The screw driving robot performs intelligent detection of critical defects, including missed screws, protruding screws, and stripped threads, ensuring high-quality assembly outcomes.

Precision Vision Screening

Using CCD vision, the robotic arm screwdriver ensures accurate screw hole positioning and intelligent identification/filtering of defective screw holes or mounting points, minimizing errors.

CAD-Driven Programming

The screw tightening robot intelligently imports product CAD drawings to automatically generate precise screw fastening point coordinates, significantly reducing programming time.

Smart Electric Screwdriver Control

The automatic screwdriver robot enables customizable torque and speed settings per fastening point, with real-time torque value and waveform graph output for precise process control.

Downforce Monitoring

Equipped with a driver bit pressure sensor, the robotic screwdriving systems automatically detect and ensure correct locking force during operation, enhancing reliability.

Production Intelligence & Integration

The screwdriver robot offers comprehensive production statistics, traceability, and seamless Manufacturing Execution System (MES) connectivity, ensuring optimized production workflows with real-time data insights.

Advanced AI Vision Integration

The Automated Optical Screw Assembly Machine leverages cutting-edge technology to streamline assembly processes, while Solving Screw Miss-Feeding in Electronics Assembly with AI Vision ensures flawless screw feeding and placement.
