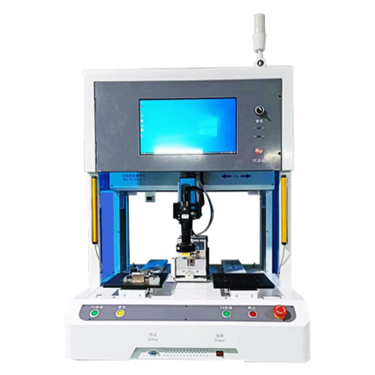

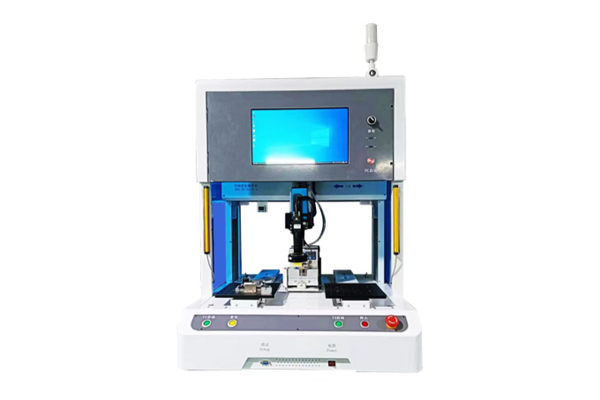

Vision-Guided Screwdriving Machine

Combining CCD vision, a smart electric screwdriver (optional), and PC control in a compact yet powerful design, an automated screw driving system offers high cost-performance and strong expandability.

Features an IPC motion control system with intuitive visual programming and unlimited data storage capacity for traceability.

Utilizes CCD vision for accurate screw hole location and intelligent screening of defective screw holes.

Employs CCD vision to guide screw coordinate point teaching, eliminating errors from manual visual alignment.

Displays screw locations and fastening results graphically, simplifying the identification and troubleshooting of defect points.

Configurable with an intelligent electric screwdriver allowing arbitrary torque/runtime settings, plus real-time torque waveform and value output for process control.

Equipped with a float height displacement sensor to automatically detect and repair lifted screw defects, improving first-pass yield.

Includes a pressure sensor on the driver bit to automatically detect and ensure correct locking pressure during operation.

Performs intelligent detection of multiple defects including missed screws, protruding screws, and stripped threads.

Offers production statistics, traceability, and optional MES (Manufacturing Execution System) connectivity for data-driven manufacturing.
